The codeset mapping is shown in the main window.

Each user can design his own codeset mapping – without affecting the underlying data. Select Customize Columns in the Codeset Editor menu.

Changing the layout of the codeset mapping is simply a drag and drop operation.

You can build a hierarchy by grouping columns. Select Group Columns in the Codeset Editor menu.

This displays the group header. Select the column that you want to group and pull it to the group header.

Select AutoFit Columns in the Codeset Editor menu to adjusts the width of all columns to accommodate cell content.

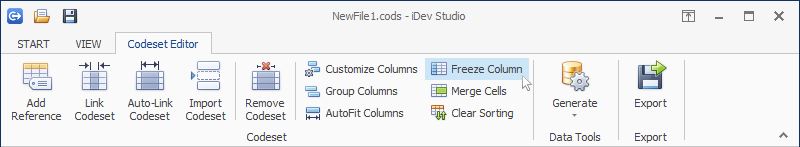

You can lock one column in the codeset mapping permanently visible while scrolling another area. To do this, click into a cell of the column and select Freeze Column in the Codeset Editor menu.

This positions the column permanently at the left position.

When you merge cells, the cells become one larger cell that is displayed across multiple rows. Select Merge Cells in the Codeset Editor menu.

This merges the cells of all columns.

You can sort the content of columns in ascending or descending order by clicking on them. In order to remove all sorting settings, select Clear Sorting in the Codeset Editor menu.
